X312-2H - AIRCRAFT MODELS AVAIABLE BOEING 737NG, 777, 787, 747, AIRBUS A320

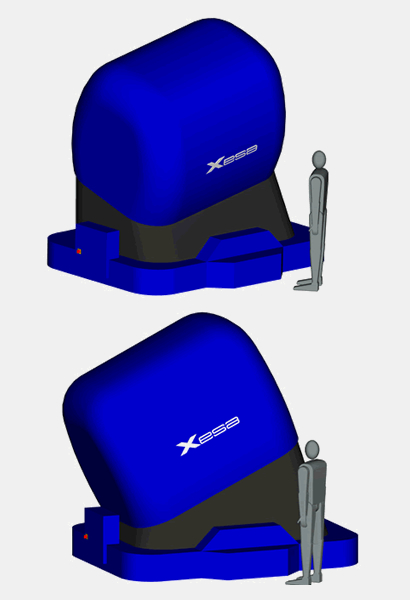

The X315-2H is the mid their model and comes with a number of additional features and optional extras. It easily seats two full size adults, features a triple display, 1:1 scale replica cockpit with full size panels and control surfaces, medium height requirements, almost silent operation, choice of power consumption and its cabin is air cooled. This is the perfect model for the more serious application where a 1:1 scaled cockpit is required for maximum visual effect.

FIXED LOCATION SIMULATOR

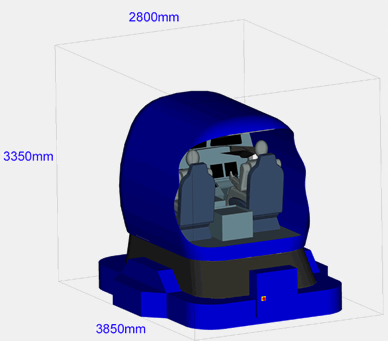

X315-2H SPECIFICATIONS
Model X312-2H
Motion System Hydraulic
Degrees Of Freedom 3
Payload 1200kg
Number of Seats 2
Pitch +/- 24 degrees
Bank +/- 23 degrees
Yaw n/a
Surge n/a
Sway n/a
Heave 700mm
Power Requirements 230v 1Ph/ 400v 3Ph
Average Power Consumption 1.5kW
Weight (Without people) 1600kg
